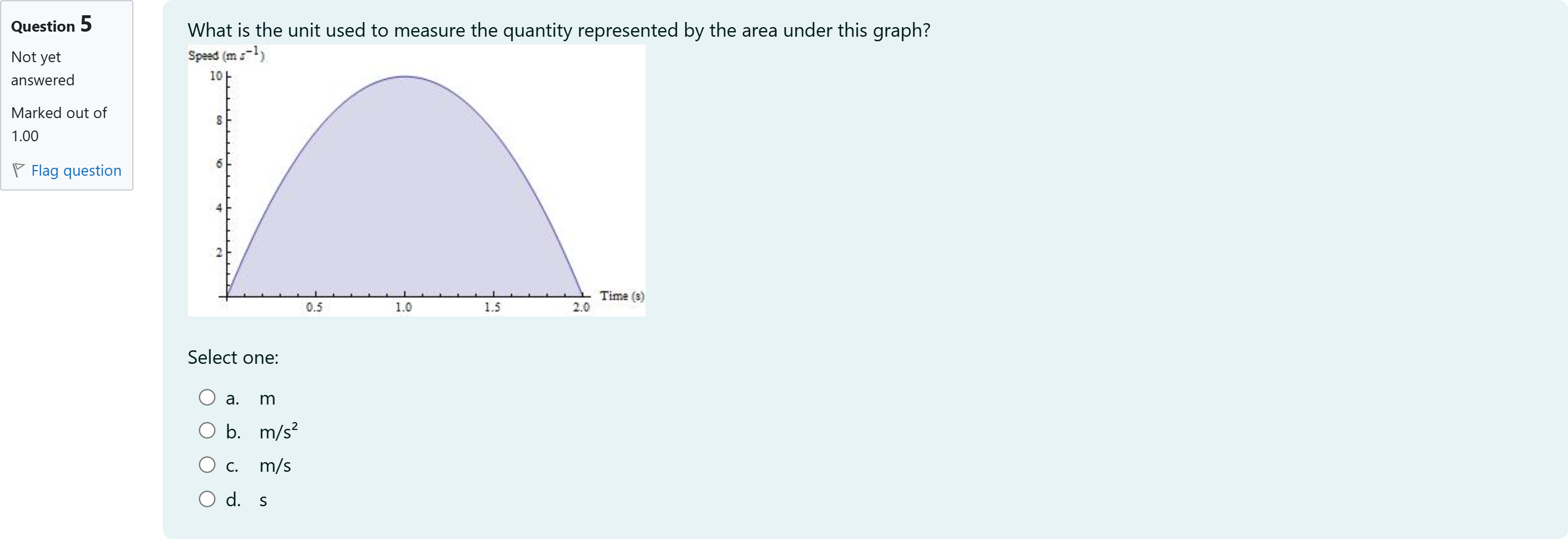

What is the unit used to measure the quantity represented by the area under this graph?

Question

BlackTom AI · Accepted Answer

Area under a speed–time graph represents displacement (or distance if speed is non‑negative). Units are obtained by multiplying the vertical axis unit (speed, m s^-1) by the horizontal axis unit (time, s), giving metres.

1. Relevant knowledge points and concepts
- The shaded quantity is the area under a speed (vertical) vs time (horizontal) graph.
- Area under a rate vs time curve equals the accumulated quantity (integral): here, speed integrated over time = displacement.
- Units of an integral are the product of the integrand’s units and the differential variable’s units.

2. Step-by-step reasoning
- Read the axis labels: speed has units m s^-1 (m/s) and time has units s.
- The area calculation is essentially ∫ speed dt.
- Unit analysis: (m s^-1) × (s) = m.

3. Intermediate unit calculation
- Write units algebraically: m s^-1 · s = m · (s/s) = m (since s cancels).
- Thus the resulting unit is metres.

4. Why the correct answer is correct
- Integrating a velocity or speed over time accumulates length (distance/displacement). The dimensional analysis shows the product of speed and time yields length (metres), so option a. m is correct.

5. Why the other options are incorrect
- b. m/s^2 is units of acceleration (rate of change of velocity), not an integrated area of speed vs time.
- c. m/s is the unit of speed/velocity (the graph’s vertical axis), not the area under the curve.
- d. s is the unit of time (the horizontal axis), not the product from area calculation.

6. Conclusion
- The unit for the quantity represented by the shaded area is metres, confirming the correct answer is a. m.

What is the unit used to measure the quantity represented by the area under this graph?单项选择题

类似问题

An object's motion is illustrated using the graph below. (NOT DRAWN TO SCALE)Determine the total displacement of the object given the following values:A : 18.9 ms-1B : -10 ms-1C : 9.4 sD : 16.3 s

What is the physical quantity represented by the area under this graph? Choose the most appropriate answer. Take note of the quantities represented by the axes.

The speed-time graphs for three vehicles X, Y, and Z are shown. If x, y, and z are the distance travelled by X, Y, and Z respectively in 8 s, which of the following comparison is correct?

The graph shows the speed of a can travelling along a conveyor belt in a factory. The can's displacement (in metres) can be calculated from the area under this graph. What is it?

What is the unit used to measure the quantity represented by the area under this graph?

The graph shows the speed of a remote controlled toy speed boat on a river. It speeds up for six seconds and then slows down for the same amount of time. The boat's displacement (in metres) can be calculated from the area under this graph. What is it?

The graph shows the speed of a remote controlled toy car on a pathway. It speeds up for one and a half seconds and then slows down for the same amount of time. The car's displacement (in metres) can be calculated from the area under this graph. What is it? Give your answer to 3 significant figures.
