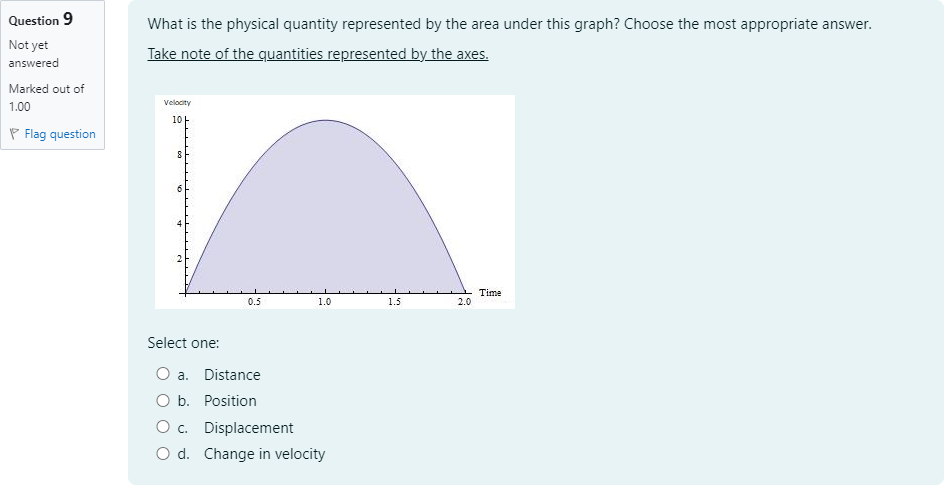

What is the physical quantity represented by the area under this graph? Choose the most appropriate answer. Take note of the quantities represented by the axes.

Question

BlackTom AI · Accepted Answer

Area under a velocity–time graph equals displacement because the integral of velocity with respect to time gives change in position.

1) Relevant knowledge points and concepts
- Velocity v(t) is the rate of change of position x(t): v(t) = dx/dt.
- The definite integral of velocity over a time interval [t1, t2] gives the change in position (displacement): Δx = ∫_{t1}^{t2} v(t) dt.
- Distance is the total path length (integral of speed |v|), position is an absolute location (requires initial x), and change in velocity is given by integrating acceleration, not velocity.

2) Step-by-step reasoning
- The plotted vertical axis is velocity and the horizontal axis is time, so the area under the curve from the initial to final time is ∫ v(t) dt.
- By the fundamental theorem of calculus and the definition of velocity: ∫_{t1}^{t2} v(t) dt = x(t2) − x(t1), which is displacement.

3) Calculation form (intermediate steps)
- Start from v(t) = dx/dt.
- Integrate both sides over [t1, t2]: ∫_{t1}^{t2} v(t) dt = ∫_{t1}^{t2} dx/dt dt.
- Right side simplifies: ∫_{t1}^{t2} dx/dt dt = x(t2) − x(t1) = Δx (displacement).

4) Why the correct answer is correct
- The area directly computes x(t2) − x(t1), the net change in position (displacement). The graph shows positive velocities, so the signed area is positive; thus the displacement is positive.

5) Why other options are incorrect
- (a) Distance: distance is ∫ |v| dt. For strictly positive v the number equals displacement, but “distance” is less general (would differ if v were negative). The question asks the most appropriate physical quantity — displacement is the standard answer for area under v–t.
- (b) Position: area gives change in position, not absolute position (you still need an initial x).
- (d) Change in velocity: that equals ∫ a dt, not ∫ v dt.

6) Conclusion
The area under the velocity–time graph represents displacement. This matches the provided correct answer: Displacement.

What is the physical quantity represented by the area under this graph? Choose the most appropriate answer. Take note of the quantities represented by the axes.单项选择题

类似问题

What is the unit used to measure the quantity represented by the area under this graph?

An object's motion is illustrated using the graph below. (NOT DRAWN TO SCALE)Determine the total displacement of the object given the following values:A : 18.9 ms-1B : -10 ms-1C : 9.4 sD : 16.3 s

The speed-time graphs for three vehicles X, Y, and Z are shown. If x, y, and z are the distance travelled by X, Y, and Z respectively in 8 s, which of the following comparison is correct?

The graph shows the speed of a can travelling along a conveyor belt in a factory. The can's displacement (in metres) can be calculated from the area under this graph. What is it?

What is the unit used to measure the quantity represented by the area under this graph?

The graph shows the speed of a remote controlled toy speed boat on a river. It speeds up for six seconds and then slows down for the same amount of time. The boat's displacement (in metres) can be calculated from the area under this graph. What is it?

The graph shows the speed of a remote controlled toy car on a pathway. It speeds up for one and a half seconds and then slows down for the same amount of time. The car's displacement (in metres) can be calculated from the area under this graph. What is it? Give your answer to 3 significant figures.
