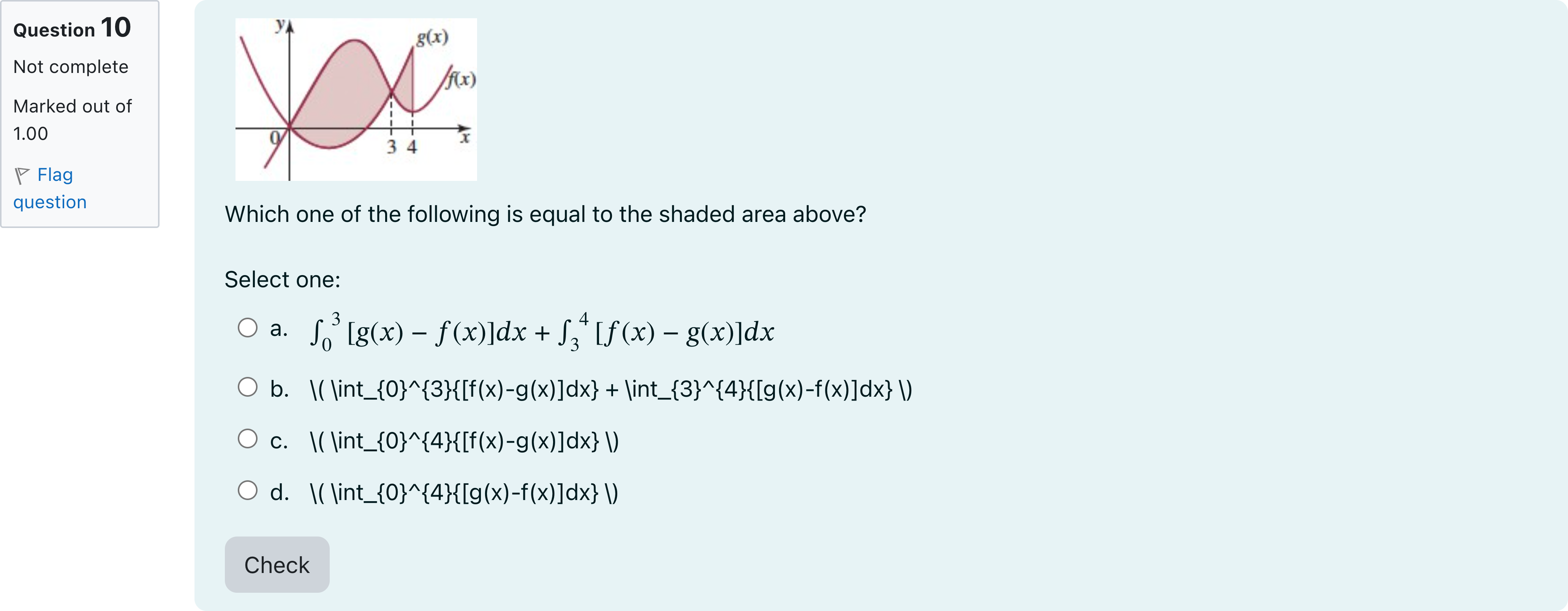

Which one of the following is equal to the shaded area above?

Question

BlackTom AI · Accepted Answer

Area between two curves on [a,b] equals the integral of (top function − bottom function) dx. When the relative order of f and g changes at an interior point, split the integral at those intersection points and take the positive (top − bottom) on each subinterval.

Relevant concepts:
- Signed area: ∫[a to b] (f − g) dx gives net (signed) area; absolute geometric area is ∫[a to b] |f − g| dx.
- If f(x) ≥ g(x) on an interval, area contribution = ∫(f − g) dx; if f(x) ≤ g(x), area = ∫(g − f) dx.
- Intersections partition the domain into subintervals where the top function is consistent.

Step-by-step reasoning and intermediate algebra:
1. The shaded region runs from x = 0 to x = 4. The curves cross at x = 0 and x = 3, so split [0,4] into [0,3] and [3,4].
2. On [0,3] the graph shows f(x) lies above g(x), so the local area = ∫_0^3 [f(x) − g(x)] dx.
3. On [3,4] g(x) lies above f(x), so the local area = ∫_3^4 [g(x) − f(x)] dx.
4. Total shaded area = ∫_0^3 [f(x) − g(x)] dx + ∫_3^4 [g(x) − f(x)] dx.

Algebraic confirmation:
Area = ∫_0^4 |f − g| dx = ∫_0^3 (f − g) dx + ∫_3^4 −(f − g) dx = ∫_0^3 (f − g) dx + ∫_3^4 (g − f) dx.

Why the correct choice (b) is correct:
Choice (b) exactly matches the expression above: ∫_0^3 [f(x) − g(x)] dx + ∫_3^4 [g(x) − f(x)] dx, which sums positive contributions on each subinterval.

Why the other options are incorrect:
- (a) has the signs reversed on each subinterval, giving negative of the desired area.
- (c) ∫_0^4 [f − g] dx is the signed net area (difference between the two region contributions), not the total geometric area.
- (d) ∫_0^4 [g − f] dx similarly gives the signed area with opposite sign.

Therefore the total shaded area is choice b, confirming the provided answer.
