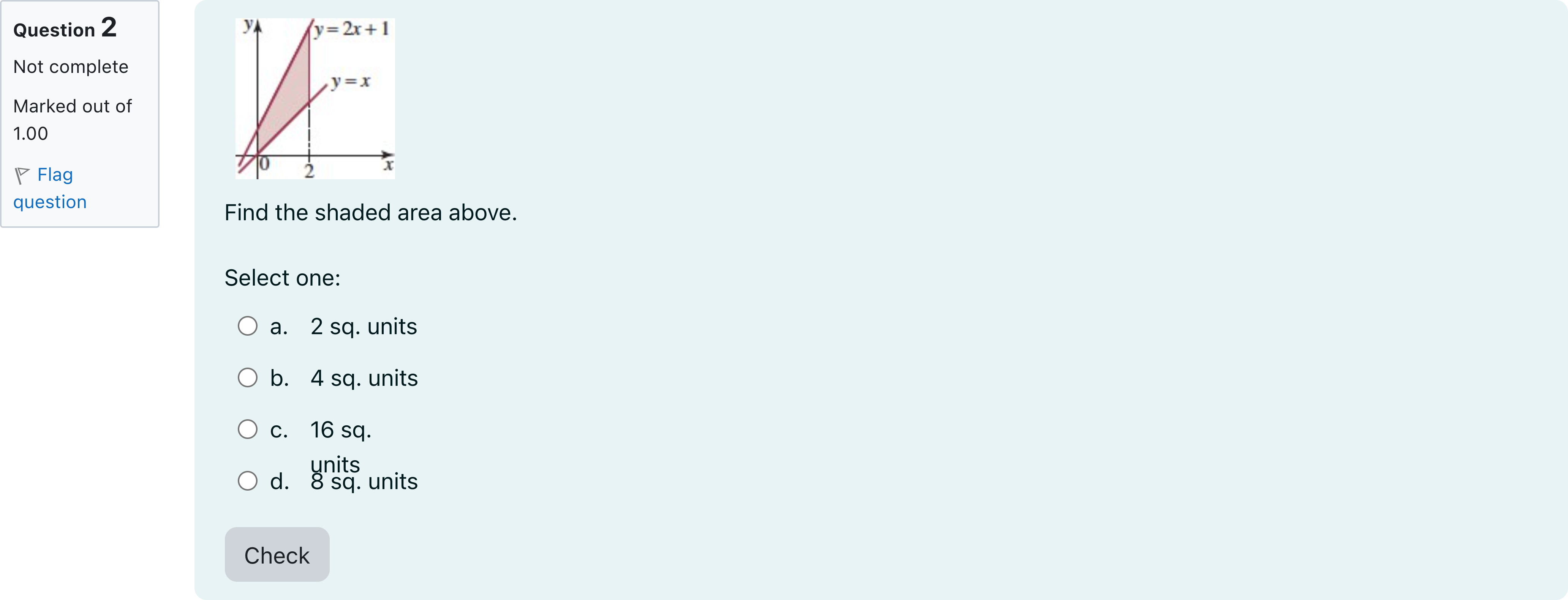

Find the shaded area above.

Question

BlackTom AI · Accepted Answer

Area between curves y = 2x + 1 (top) and y = x (bottom) from x = 0 to x = 2 is given by the integral of (top − bottom) dx.

1) Relevant knowledge points and concepts
- The area between two curves y = f(x) (upper) and y = g(x) (lower) on [a,b] is ∫[a to b] (f(x) − g(x)) dx.
- Identify vertical boundaries a and b from the picture: the shaded region is bounded on the left by x = 0 (the y‑axis) and on the right by x = 2 (the dashed vertical line).

2) Complete reasoning process step by step
- Determine which curve is on top on [0,2]: for any x, 2x+1 − x = x+1, which is positive on [0,2], so y = 2x + 1 is above y = x.
- Set up the area integral from x = 0 to x = 2 of (2x + 1 − x) dx = ∫[0 to 2] (x + 1) dx.

3) Calculations with intermediate steps
- Integrand: x + 1.
- Antiderivative: (1/2)x^2 + x.
- Evaluate from 0 to 2:
  (1/2)(2)^2 + (2) − [ (1/2)(0)^2 + 0 ] = (1/2)(4) + 2 = 2 + 2 = 4.

4) Why the correct answer is correct
- The integral computes the exact vertical distance between the two lines at each x, summed over 0 ≤ x ≤ 2. The computation yields 4 square units, so the shaded area is 4.

5) Why the other options are incorrect
- (a) 2 sq. units: too small — corresponds roughly to half the true integral; incorrect.
- (c) 16 sq. units: far too large — would be area of a much larger region.
- (d) 8 sq. units: double the correct value; not supported by the computed integral.

6) Conclusion
The area of the shaded region is 4 square units, matching the provided correct answer: b. 4 sq. units.
