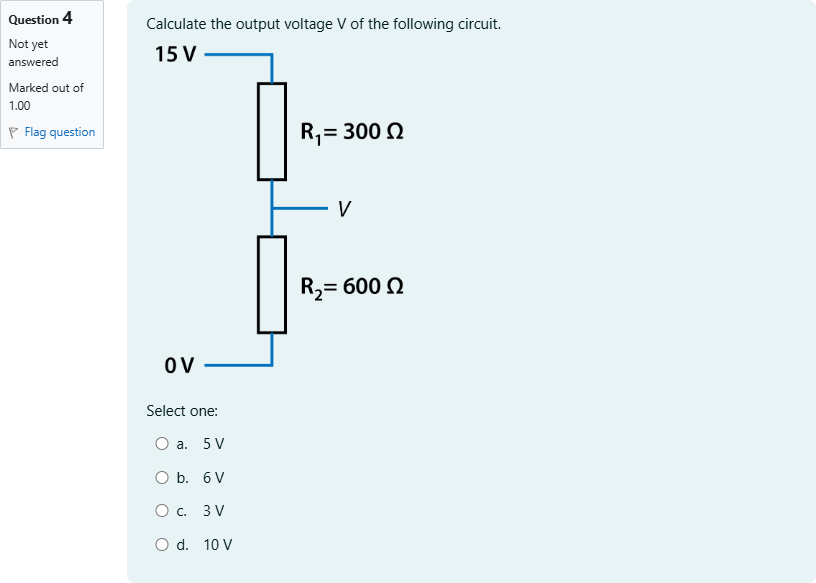

Calculate the output voltage V of the following circuit.单项选择题

题目图片
A

a. 5 V

B

b. 6 V

C

c. 3 V

D

d. 10 V
