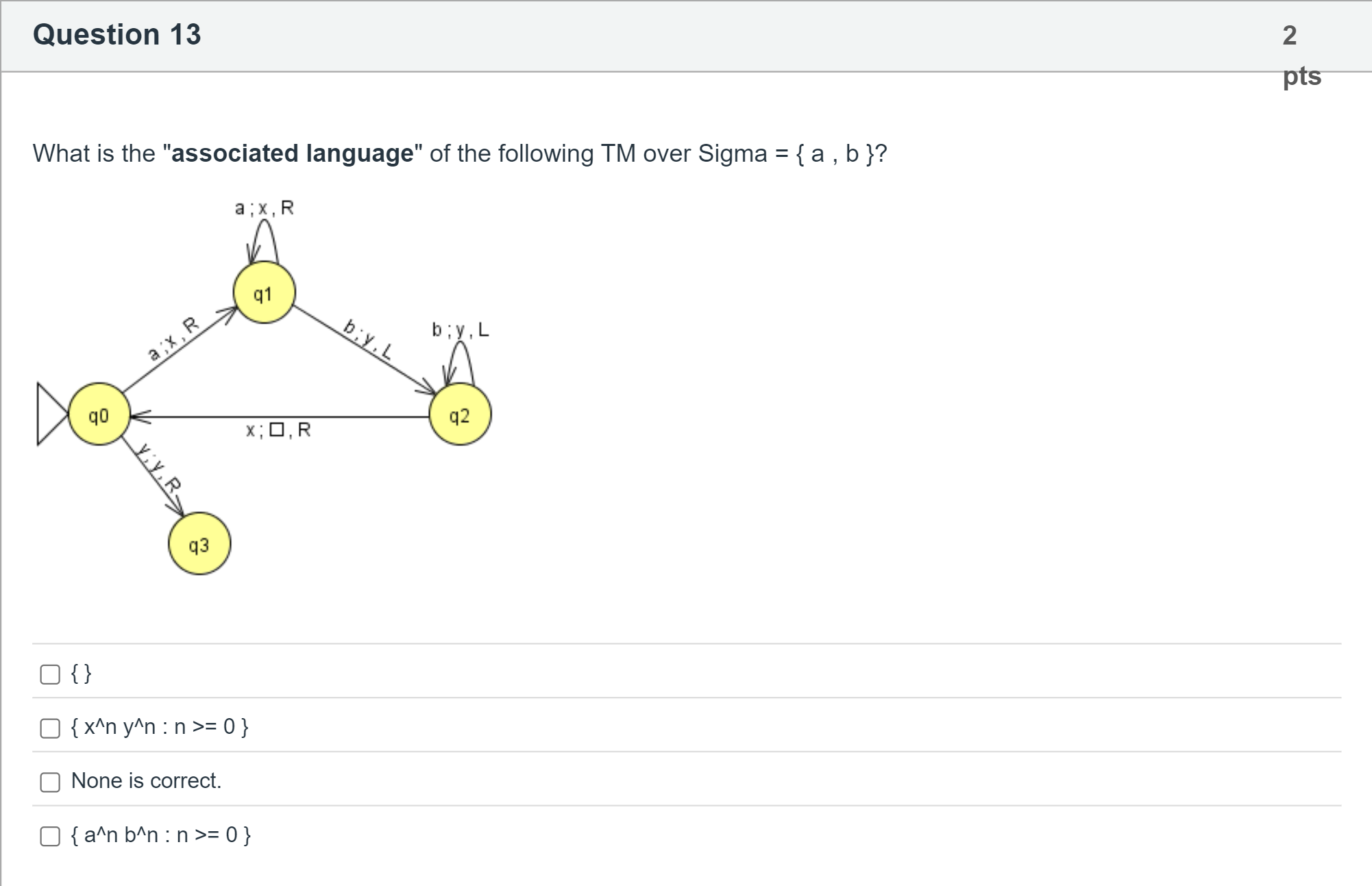

What is the "associated language" of the following TM over Sigma = { a , b }?

Question

BlackTom AI · Accepted Answer

The TM marks matching a’s and b’s (changing a -> x and b -> y) and repeatedly pairs a leftmost unmarked a with a rightmost unmarked b, so it recognizes {a^n b^n : n ≥ 0}.

1) Relevant concepts:
- A Turing machine can recognize a^n b^n by marking symbols (using auxiliary symbols x,y) and repeatedly matching one a with one b.
- If after repeated marking the tape contains only marked b’s (y) or is empty, the input had exactly the same number of a’s and b’s in the required order; if a mismatch occurs the machine has no applicable transition and rejects.

2) Step-by-step reasoning of this machine:
- q0 is the start state. On seeing an a in q0 it writes x and moves right into q1 (q0 -- a:x,R --> q1). This marks a leftmost unmarked a.
- In q1 the machine moves right over a’s (writing them x via the a:x,R loop) until it encounters the first b. On the first b it writes y and moves left into q2 (q1 -- b:y,L --> q2). This marks a corresponding b.
- In q2 the machine moves left over b’s (writing y via the b:y,L loop) until it finds an x (a marked a). On that x it performs the transition back toward q0 (the diagram shows an x transition that moves back to q0), effectively completing one pairing and preparing for the next round.
- Back in q0 the machine either finds another a to repeat the pairing, or finds y’s only (meaning all a’s were paired). The transition q0 -- y:y,R --> q3 moves to the accept-like final state when only y’s remain.

3) Example (ab):
- Tape: a b, start q0 on first cell.
- q0 reads a -> write x, R, go to q1: tape x b.
- q1 reads b -> write y, L, go to q2: tape x y (head on x).
- q2 reads x -> transition back to q0 and move right: tape (x turned handled), head on y.
- q0 sees y -> moves to q3 (accept). So "ab" accepted.

4) Why correct answer is correct:
- The machine enforces that all a’s occur before b’s, marks exactly one a with one b each cycle, and only accepts when every a has a matching b. That exactly characterizes {a^n b^n}.

5) Why other options are incorrect:
- "{}" (empty language) is wrong because the machine accepts strings like "ab", "aabb", etc.
- "{ x^n y^n : n >= 0 }" is simply a notation with different alphabet symbols; the original alphabet is {a,b}, and the machine operates on a’s and b’s (it uses x,y as internal marks but does not treat x,y as original input alphabet), so this option is not the intended language.
- "None is correct." is wrong because a standard equal-number-of-a’s-then-b’s language is indeed recognized.

Conclusion: The TM recognizes { a^n b^n : n ≥ 0 }, which matches the provided answer.
