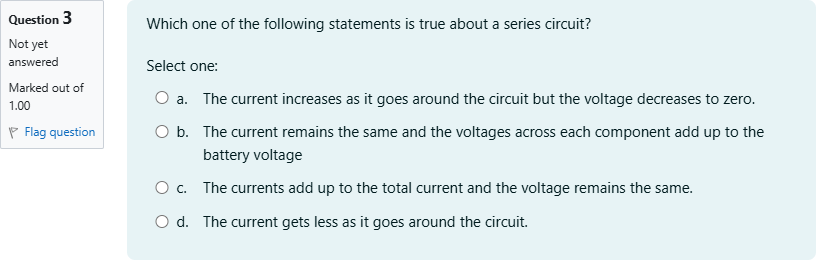

Which one of the following statements is true about a series circuit?

Question

BlackTom AI · Accepted Answer

In a series circuit the current is the same through every component and the source voltage is shared (divided) among the components; this follows from conservation of charge and energy (Kirchhoff’s laws).

Relevant concepts:
- Conservation of charge: with a single path (series), the same number of charges per second flow through each element, so the current I is identical at all points.
- Kirchhoff’s Voltage Law (KVL): the algebraic sum of voltage changes around a closed loop equals zero, so the battery voltage equals the sum of the voltage drops across each series element: Vbattery = V1 + V2 + ... + Vn.
- Ohm’s law: V = I·R relates current, voltage and resistance for each element.

Step-by-step reasoning with a numerical example:
1. Suppose a 12 V battery supplies two resistors in series: R1 = 2 Ω and R2 = 4 Ω.
2. Total resistance Rtotal = R1 + R2 = 2 + 4 = 6 Ω.
3. Current in the loop: I = Vbattery / Rtotal = 12 V / 6 Ω = 2 A. This same 2 A flows through both resistors (no alternate paths).
4. Voltage across R1: V1 = I·R1 = 2 A · 2 Ω = 4 V. Voltage across R2: V2 = I·R2 = 2 A · 4 Ω = 8 V.
5. Check sum: V1 + V2 = 4 V + 8 V = 12 V = Vbattery, confirming voltages add to the battery voltage.

Why option b is correct:
- It states exactly the two key properties above: current remains the same in series, and voltages across components add to the battery voltage.

Why the other options are incorrect:
- a. “Current increases as it goes around… voltage decreases to zero.” Incorrect — current does not increase; it is constant. Voltage drops sum to the source but do not cause current to increase.
- c. “Currents add up… voltage remains the same.” That describes a parallel circuit, not series.
- d. “The current gets less as it goes around.” Incorrect — with one path the current is uniform; it does not diminish around the loop.

Conclusion: The correct answer is b. The current remains the same and the voltages across each component add up to the battery voltage.
