Inspect the following conceptual model

Identify the primary key of the Store entity

Question

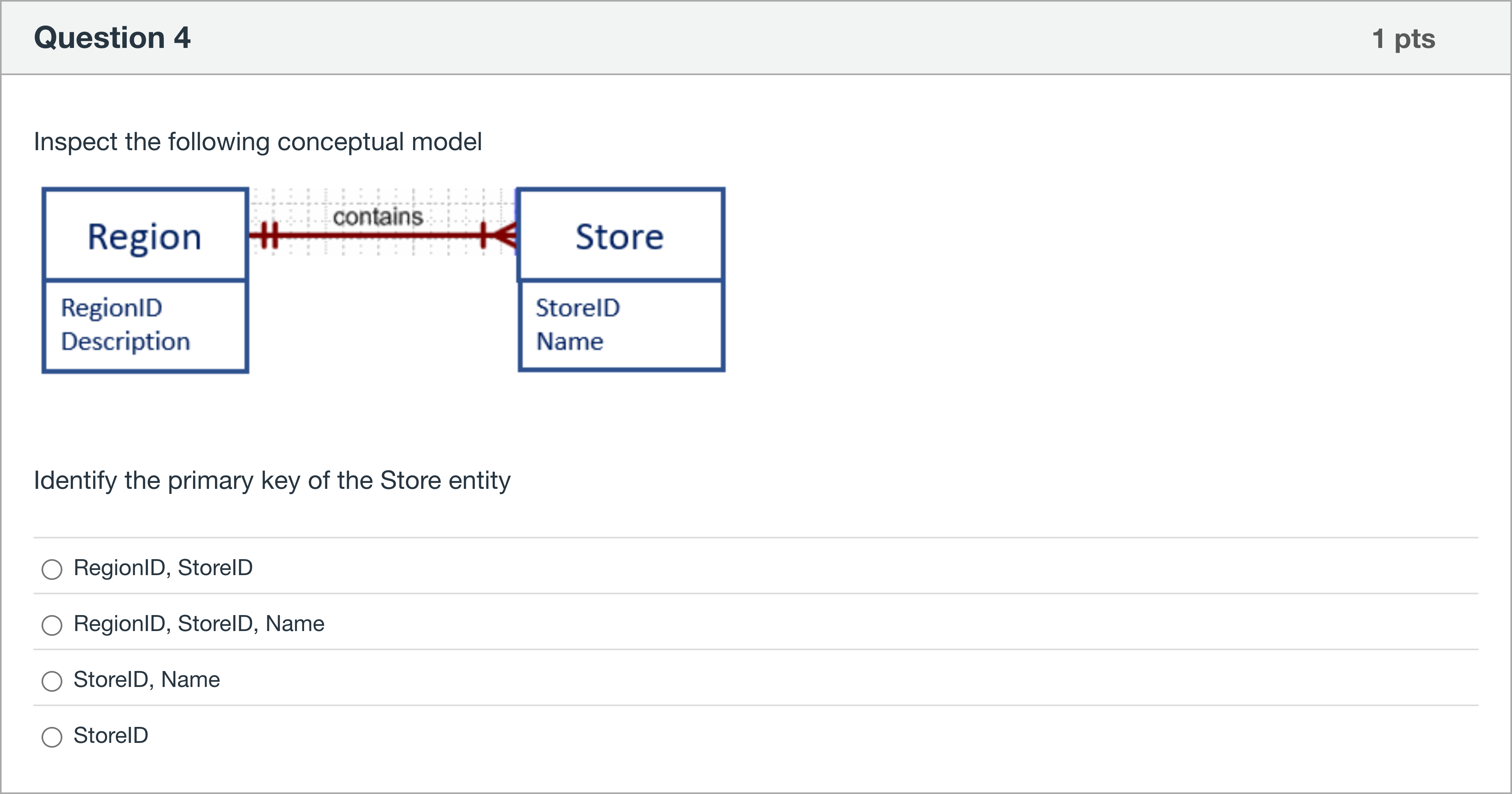

Inspect the following conceptual model

Identify the primary key of the Store entity

BlackTom AI · Accepted Answer

StoreID uniquely identifies each Store, so it is the primary key.

1) Relevant knowledge points and concepts
- Primary key: an attribute (or minimal set of attributes) that uniquely identifies each instance of an entity.
- Foreign key: an attribute that links to the primary key of another entity (used for relationships).
- Composite key: more than one attribute used together to uniquely identify an instance; only used when no single attribute is sufficient.
- Uniqueness vs. descriptive attributes: attributes like Name are usually descriptive and may not be unique.

2) Step-by-step reasoning process
- Inspect the Store entity: attributes shown are StoreID and Name.
- Determine whether any single attribute can uniquely identify a Store: StoreID is a typical identifier (ID) intended to be unique.
- Consider whether RegionID must be part of the primary key: the diagram shows Region contains Store (one-to-many). That implies a Store belongs to one Region, so RegionID will appear as a foreign key in Store, but not necessarily as part of the primary key.
- Evaluate if a composite key is needed: only necessary if StoreID is not globally unique and is only unique within a Region. The model explicitly lists StoreID as an attribute; typical modeling practice is to use a single StoreID as the primary key.
- Assess Name: store names are not guaranteed unique and are descriptive, so they should not be part of the primary key.

3) Intermediate "calculation" steps (logical)
- Is StoreID present? Yes.
- Does StoreID uniquely identify a store? Yes (conventional ID attribute).
- Is there evidence StoreID is only unique within Region? No evidence; relationship indicates Region→Store (one-to-many), meaning RegionID is a foreign key, not required for uniqueness.

4) Why the correct answer is correct
StoreID is the minimal attribute that uniquely identifies each Store instance. It meets the definition of a primary key without needing RegionID or Name.

5) Why the other options are incorrect
- RegionID, StoreID: makes a composite key unnecessary and redundant if StoreID is already unique.
- RegionID, StoreID, Name: adds an extra descriptive attribute (Name) that is not needed and violates minimality.
- StoreID, Name: includes Name which is descriptive and not required for uniqueness.

6) Conclusion
Therefore the primary key of Store is StoreID, matching the provided correct answer.
