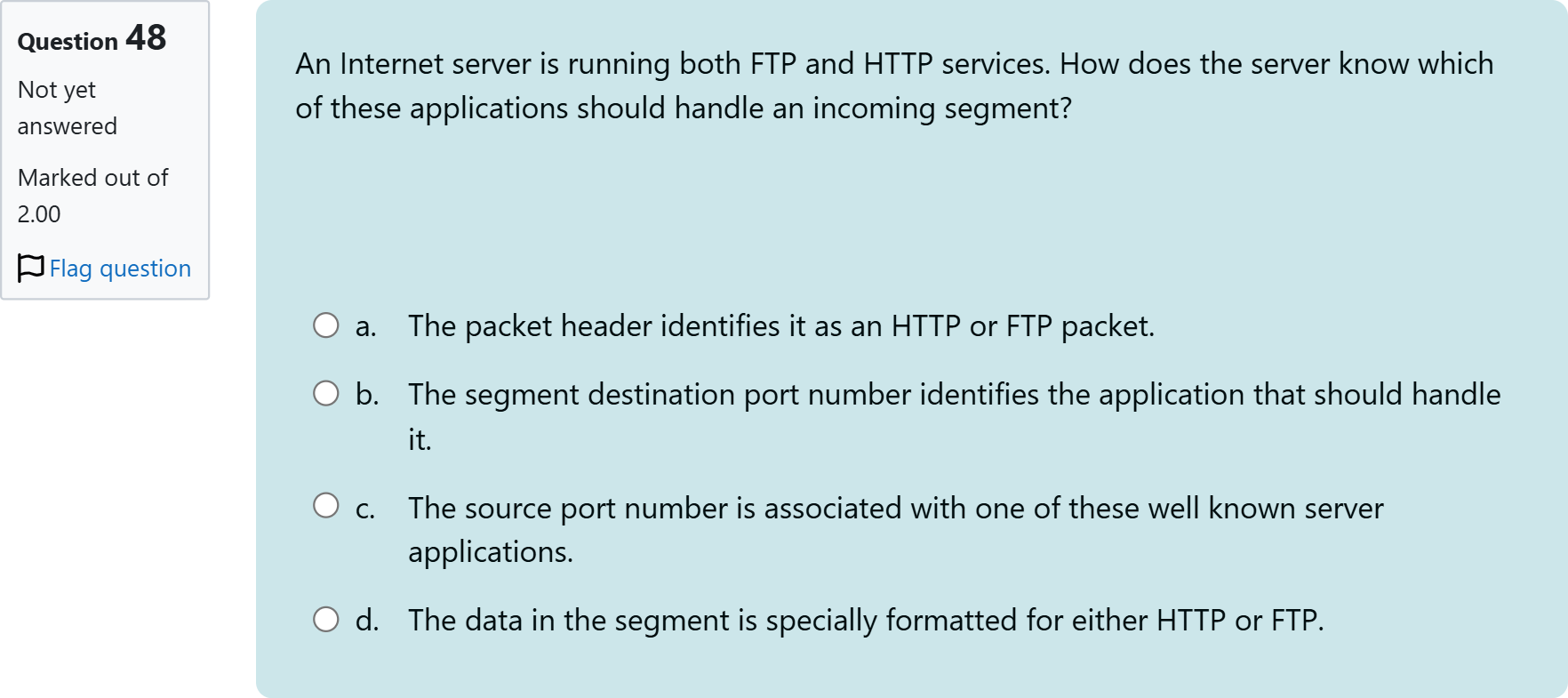

An Internet server is running both FTP and HTTP services. How does the server know which of these applications should handle an incoming segment?

Question

BlackTom AI · Accepted Answer

Transport-layer demultiplexing uses the segment’s destination port number to deliver incoming data to the correct application process (e.g., HTTP or FTP).

1) Relevant knowledge points and concepts
- The TCP and UDP headers include both source and destination port numbers.
- Operating systems demultiplex incoming segments by the destination port number, matching it against sockets bound by server applications.
- Well-known server ports: HTTP typically listens on TCP port 80 (or 443 for HTTPS); FTP uses ports 21 (control) and 20 (data).
- IP packet headers identify network-layer addressing (source/destination IP) and protocol (e.g., TCP), but not the specific application protocol.

2) Step-by-step reasoning
- A segment arrives at the host and the NIC/OS processes it up the stack.
- The IP layer verifies the destination IP and hands the packet to the transport layer according to the IP protocol field (TCP or UDP).
- The transport layer parses the TCP/UDP header and reads the destination port number.
- The OS looks up which socket or server process has bound to that destination port (e.g., port 80 → web server, port 21 → FTP server).
- The transport layer delivers the segment’s payload to that application’s socket.

3) Calculations / intermediate steps
- No numeric calculation is required; the lookup is a direct mapping from destination port → listening socket/process (e.g., dest port = 80 → web server).

4) Why the correct answer is correct
- The destination port is the standard mechanism for identifying which application should receive the incoming segment; it is how the OS demultiplexes transport-layer traffic to the appropriate server process.

5) Why the other options are incorrect
- a. “The packet header identifies it as an HTTP or FTP packet.” Incorrect: the IP header identifies network addresses and the protocol (e.g., TCP) but does not label the application protocol (HTTP/FTP).
- c. “The source port number is associated with one of these well known server applications.” Incorrect: the source port is usually an ephemeral client port, not the server’s well-known port, so it cannot reliably identify the server application.
- d. “The data in the segment is specially formatted for either HTTP or FTP.” Incorrect: although payload formats differ, OS demultiplexing does not rely on parsing application data to decide delivery; it uses the destination port.

6) Conclusion
The correct answer is b. The segment destination port number identifies the application that should handle it. This matches the provided answer.
