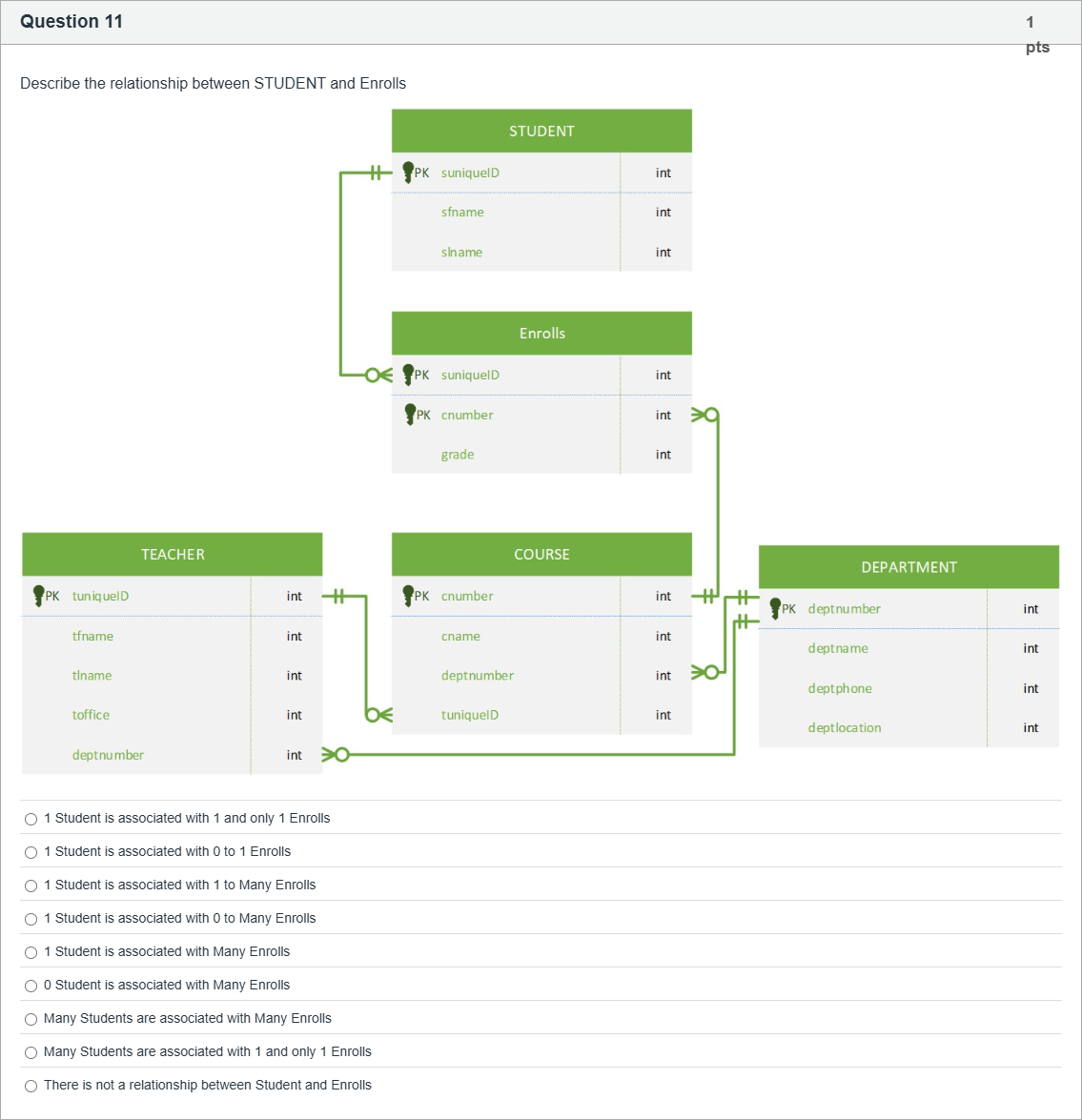

Describe the relationship between STUDENT and Enrolls

Question

BlackTom AI · Accepted Answer

The crow’s-foot notation and the composite key in Enrolls determine the cardinality and optionality: a single STUDENT can be linked to multiple Enrolls rows (one-to-many), and a student may have zero enrollments (optional).

1) Relevant knowledge points and concepts
- Entity-relationship cardinality: one-to-one, one-to-many, many-to-many, and the optionality (0 vs 1 minimum).
- Foreign key and primary key behavior: when a child table (Enrolls) includes the parent’s primary key as part of its key, multiple child rows can reference the same parent key if the child’s primary key has additional columns (composite key).
- Crow’s-foot notation: a crow’s-foot at one end means “many”; a circle indicates optional (zero allowed); a straight bar indicates mandatory (one required).

2) Step-by-step reasoning
- The STUDENT entity has suniqueID as its primary key.
- The Enrolls table includes suniqueID as part of its composite primary key (suniqueID + cnumber). That means Enrolls rows are uniquely identified by both student and course number.
- Because cnumber varies, multiple Enrolls rows can share the same suniqueID (different cnumber values), so many enrollments can belong to the same student.
- The diagram’s notation at the STUDENT-to-Enrolls connection shows a crow’s-foot on the Enrolls side (many) and a circle on the Enrolls side indicating optionality, so a student can have zero or many enrollments.

3) Intermediate steps / evidence
- If student S has suniqueID = 5, Enrolls could contain (5, C1), (5, C2), (5, C3) — multiple rows for the same student.
- No constraint in the model forces at least one Enrolls row for each STUDENT, so zero is allowed.

4) Why the correct answer is correct
- The combination of the foreign key inclusion and the crow’s-foot plus optional indicator yields “0 to many”: each STUDENT may be associated with no Enrolls or with many Enrolls records.

5) Why other options are incorrect (brief)
- “1 and only 1” or “1 to Many” incorrectly require at least one enrollment.
- “0 to 1” or “1 to 1” restrict to at most one Enrolls row per student, which contradicts the composite key allowing multiple cnumber values.
- “Many Students are associated with Many Enrolls” and similar many-to-many statements misinterpret the direction: Enrolls is the associative/child table linking each student to multiple course rows, not a pure many-to-many description here.
- “There is not a relationship” is false because suniqueID appears in both tables and the diagram shows a relationship.

6) Conclusion
The correct description is “1 Student is associated with 0 to Many Enrolls,” which matches the provided answer.
