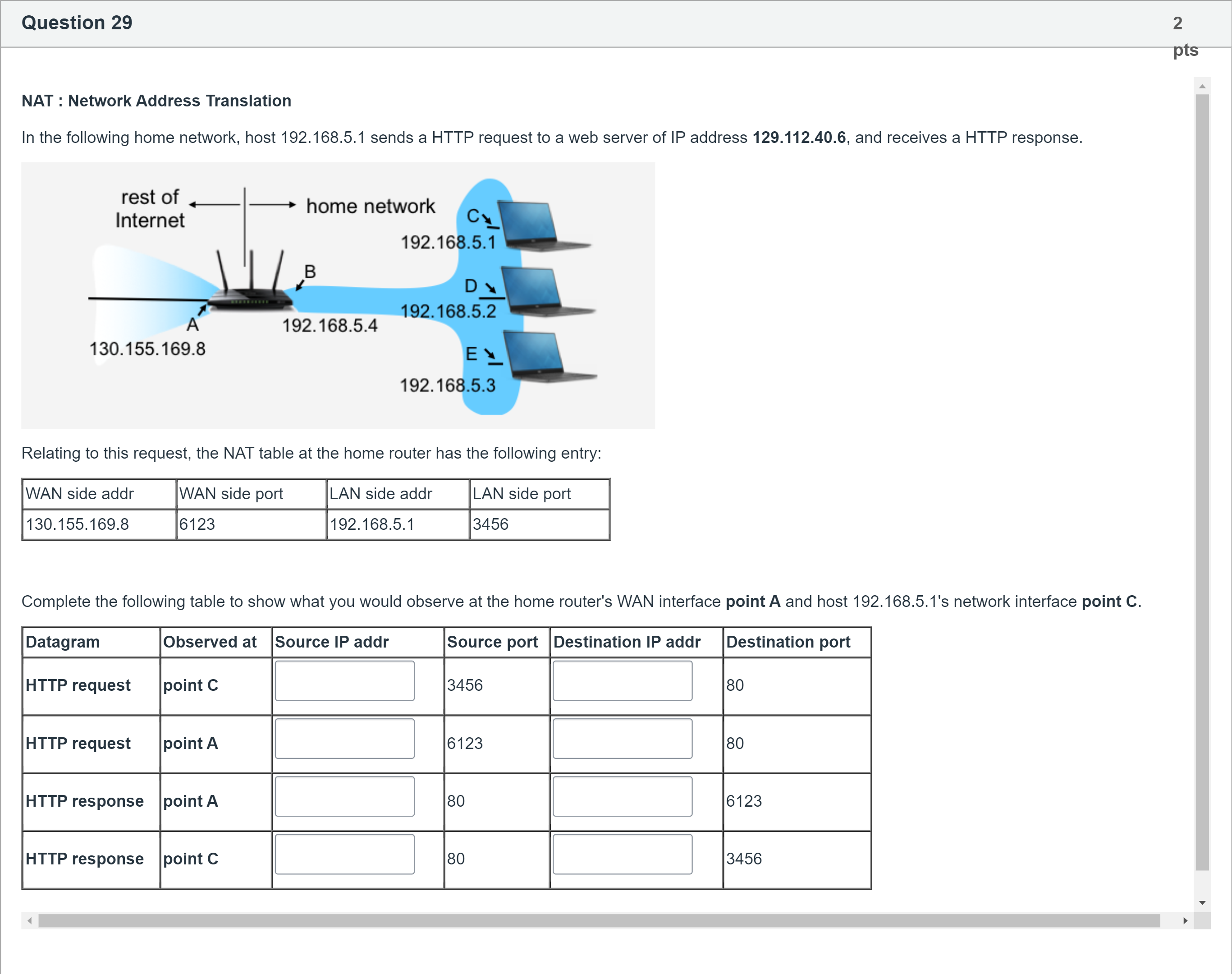

NAT : Network Address Translation In the following home network, host 192.168.5.1 sends a HTTP request to a web server of IP address 129.112.40.6, and receives a HTTP response. Relating to this request, the NAT table at the home router has the following entry: WAN side addr WAN side port LAN side addr LAN side port 130.155.169.8 6123 192.168.5.1 3456 Complete the following table to show what you would observe at the home router's WAN interface point A and host 192.168.5.1's network interface point C. Datagram Observed at Source IP addr Source port Destination IP addr Destination port HTTP request point C [Fill in the blank] 3456 [Fill in the blank] 80 HTTP request point A [Fill in the blank] 6123 [Fill in the blank] 80 HTTP response point A [Fill in the blank] 80 [Fill in the blank] 6123 HTTP response point C [Fill in the blank] 80 [Fill in the blank] 3456 多项填空题

登录即可查看完整答案
我们收录了全球超50000道真实原题与详细解析,现在登录,立即获得答案。
类似问题
A home network is shown in the following figure and its configurations are shown in the table below. Router interface IP address Computer interface IP address D 192.168.3.1 A 192.168.3.5 E 13.150.19.8 B 192.168.3.6 C 192.168.3.7 Now host C (IP address 192.168.3.7) sends a HTTP request to a web server of IP address 19.12.41.8, and received a HTTP response. You found that relating to this request, the NAT table at the home router has the following entry: WAN side IP address WAN side port LAN side IP address LAN side port 13.150.19.8 6789 192.168.3.7 4567 Please fill in the following the following table to show what you would observe when you capture the datagrams at the home router's WAN interface E and host interface C. Datagram Observed at Source IP addr Source port Destination IP addr Destination port HTTP request interface C [Fill in the blank] [Fill in the blank] [Fill in the blank] [Fill in the blank] HTTP request interface E [Fill in the blank] [Fill in the blank] [Fill in the blank] [Fill in the blank] HTTP response interface E [Fill in the blank] [Fill in the blank] [Fill in the blank] [Fill in the blank] HTTP response interface C [Fill in the blank] [Fill in the blank] [Fill in the blank] [Fill in the blank]
Ch08. The number of simultaneous connections from the LAN behind and NAT-enabled router is limited to 4 (one for HTTP server, one for FTP server, one for SMTP server, and one for DNS).
The number of simultaneous connections from the LAN behind an NAT-enabled router is unlimited.
13- NAT (Network Address Translation) replacing the source IP address and the port number of every outgoing datagram to a new IP address (NAT IP address) and a new port number.
