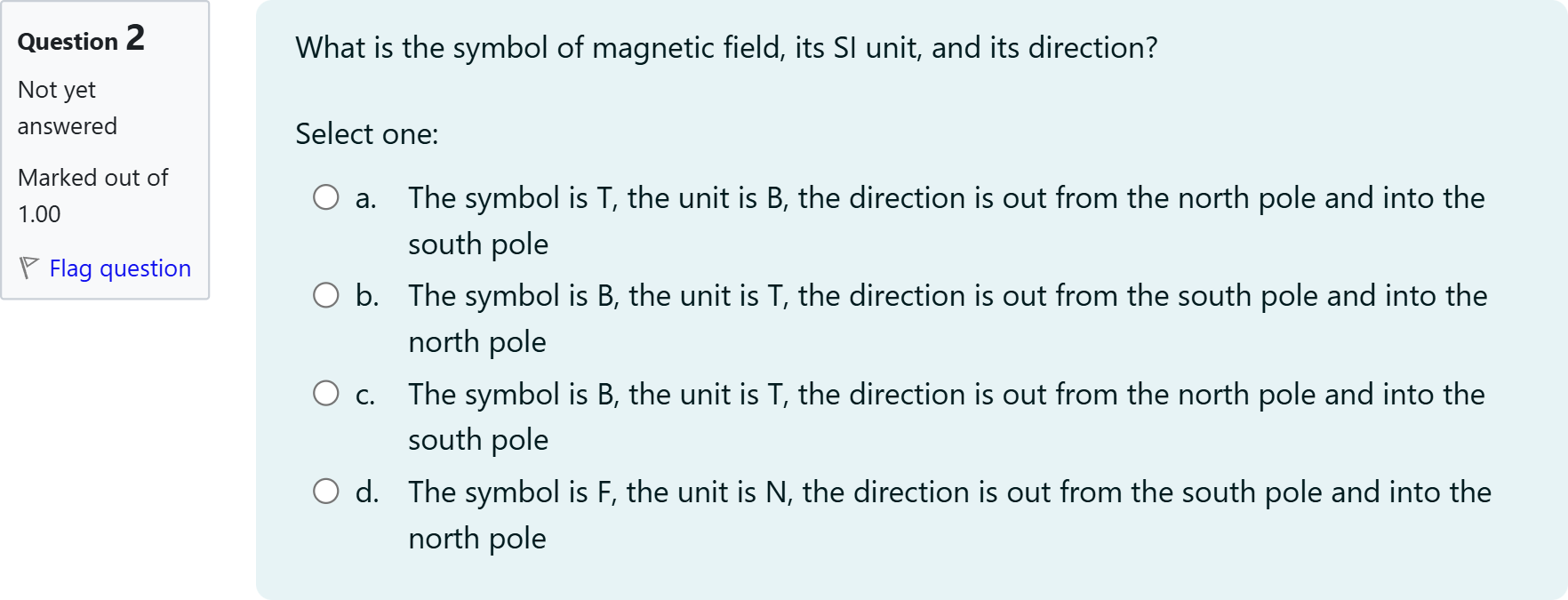

What is the symbol of magnetic field, its SI unit, and its direction?

Question

BlackTom AI · Accepted Answer

Re-stating the question and answer options helps set the stage for analysis: What is the symbol of the magnetic field, its SI unit, and its direction?

Option a: The symbol is T, the unit is B, the direction is out from the north pole and into the south pole.
- This is incorrect because the symbol for the magnetic field is not T; T stands for tesla, which is the unit. The symbol B should represent the magnetic field itself, not the unit. The direction part aligns with the general idea of field lines, but the swapped symbol and unit render this option wrong.

Option b: The symbol is B, the unit is T, the direction is out from the south pole and into the north pole.
- Here the symbol B is correct, and the unit T (tesla) is correct. However, the stated direction is opposite to the conventional magnetic field direction in the space outside a magnet (field lines go from the north to the south pole). Since the direction is reversed, this option is inaccurate.

Option c: The symbol is B, the unit is T, the direction is out from the north pole and into the south pole.
- This option uses the correct symbol for the magnetic field (B) and the correct SI unit (tesla, T). The direction described—outward from the north pole and into the south pole—is consistent with how magnetic field lines are defined outside a magnet, where they emerge from the north and complete their loop into the south. Conceptually, this matches standard physics conventions for magnetic field direction in the region outside magnetic sources.

Option d: The symbol is F, the unit is N, the direction is out from the south pole and into the north pole.
- This is incorrect because F (force) and N (newtons) pertain to mechanical force, not the magnetic field. Mixing these units with magnetic field terminology confuses different physical quantities, and the direction stated also contradicts the standard field direction pattern.

To recap the common conventions: the magnetic field symbol is B, its SI unit is tesla (T), and the field lines outside a magnet point from the north pole toward the south pole. This makes option c the consistent choice when all three aspects—symbol, unit, and direction—are evaluated together.
