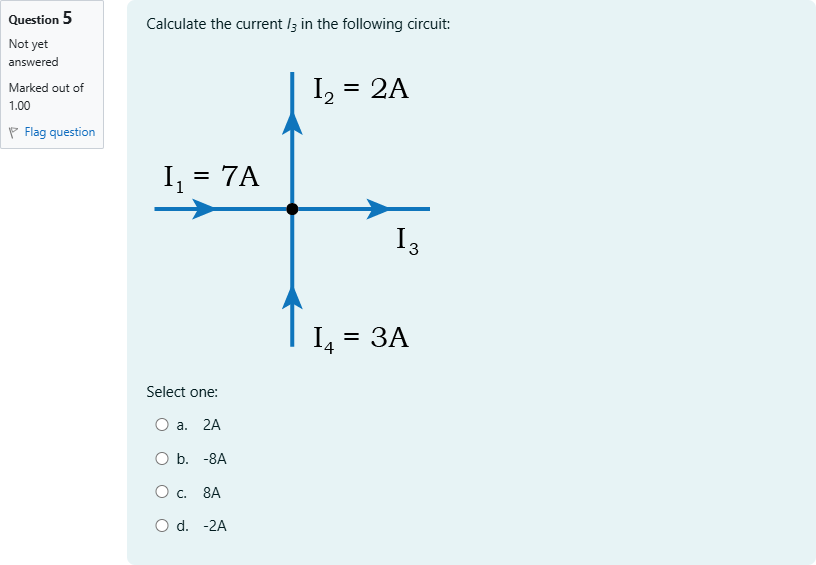

Calculate the current I3 in the following circuit:

Question

BlackTom AI · Accepted Answer

Apply Kirchhoff’s Current Law (KCL): the algebraic sum of currents at a node is zero, so the sum of currents entering the node equals the sum leaving it.

Identify currents and directions from the diagram:
- I1 = 7 A enters the node from the left (into the node).
- I4 = 3 A enters the node from below (upward into the node).
- I2 = 2 A leaves the node upward (away from the node).
- I3 is the unknown leaving the node to the right (arrow shown to the right).

Write KCL as "entering = leaving":
I1 + I4 = I2 + I3

Substitute the known values:
7 A + 3 A = 2 A + I3

Combine left-hand terms:
10 A = 2 A + I3

Solve for I3:
I3 = 10 A − 2 A
I3 = 8 A

Intermediate arithmetic steps shown: 7 + 3 = 10, then 10 − 2 = 8.

Why this is correct: KCL enforces charge conservation at the node; the two incoming currents (7 A and 3 A) supply 10 A total, and 2 A leaves upward, so the remaining 8 A must leave to the right as I3. The positive sign indicates the assumed direction (to the right) matches the actual current direction in the diagram.

Why the other choices are incorrect:
- 2 A would ignore one or more incoming currents (e.g., 7 − 3 = 4 or other incorrect combinations).
- −8 A would have the correct magnitude but the wrong sign, implying the current actually flows left instead of the shown right.
- −2 A is both wrong magnitude and sign.

Therefore I3 = 8 A, which matches the provided correct answer (c. 8A).
