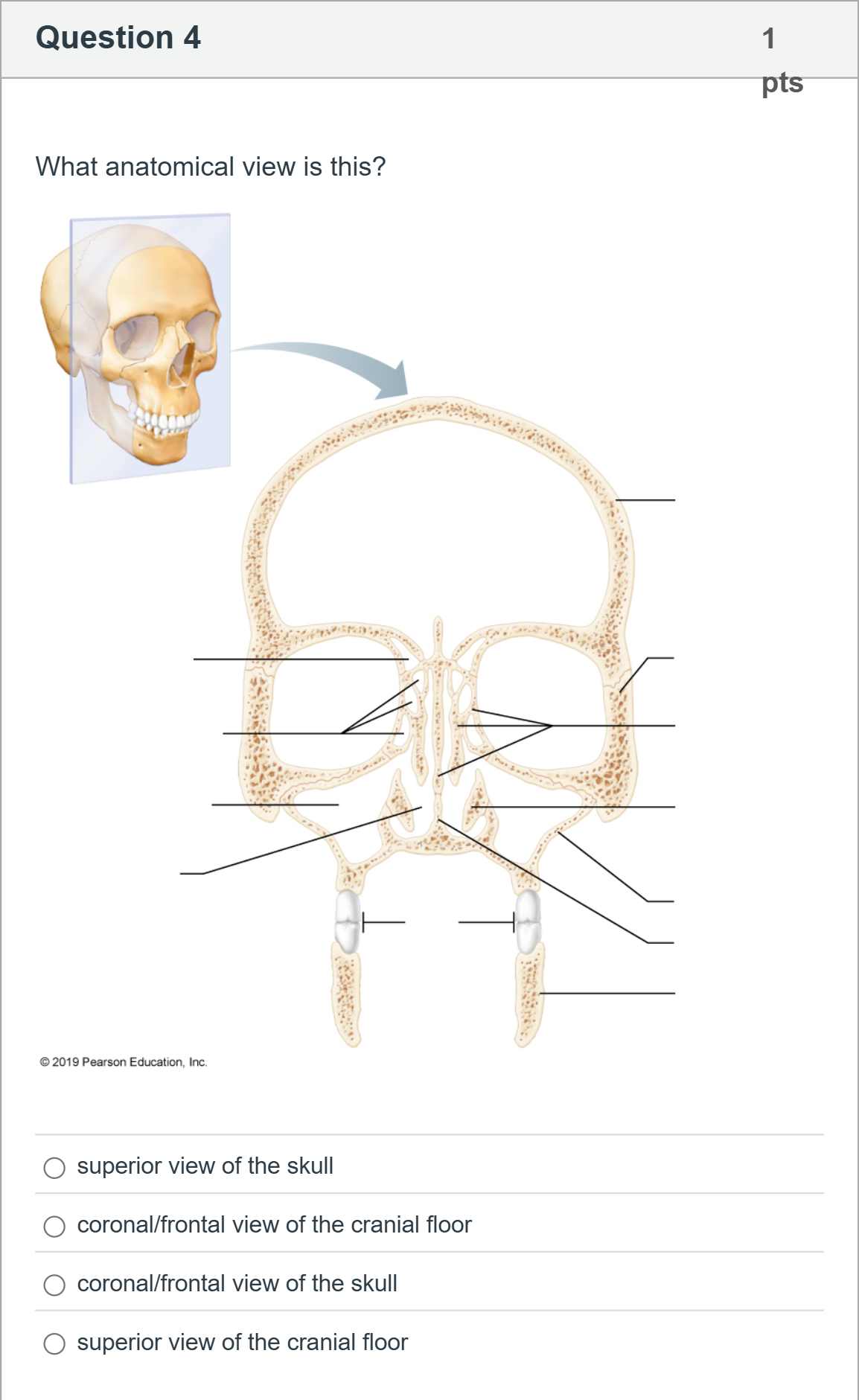

What anatomical view is this?

Question

BlackTom AI · Accepted Answer

A coronal (frontal) section divides the skull into anterior (front) and posterior (back) portions, so a coronal/frontal view shows the face and internal facial structures as if looking straight at the front of the skull.

1) Relevant knowledge points and concepts
- Anatomical planes: coronal (frontal) plane runs vertically, separating anterior/posterior; superior view looks down from above.
- "Skull" generally refers to the entire craniofacial skeleton; "cranial floor" specifically denotes the internal base of the cranial cavity (the endocranial surface), not the facial skeleton.
- Structures visible in a coronal cut of the skull include orbits, nasal cavity/septum, maxilla, and paranasal sinuses.

2) Step-by-step reasoning process
- The illustration shows bilateral symmetry of facial structures (both orbits, nasal cavity and septa, maxillary sinuses) seen as if facing the skull — consistent with a frontal/coronal orientation.
- The inset shows a vertical plane placed at the front of the skull, indicating a frontal section.
- The cut exposes facial cavities (orbits, nasal passages, tooth roots in the maxilla), which are anterior facial features rather than the internal cranial base.

3) Intermediate observations (no numerical calculations)
- Visible orbits and nasal cavity centered in the image → anterior facial view.
- Presence of maxillary teeth/alveolar processes and paranasal sinuses → facial skeleton shown.
- The plane of section is vertical and frontal in the inset.

4) Why the correct answer is correct
- Because the image is a vertical section through the face showing anterior facial anatomy, it is a coronal/frontal view of the skull.

5) Why other options are incorrect
- "Superior view of the skull": would show the calvaria from above (top of head), not anterior facial structures.
- "Coronal/frontal view of the cranial floor": the cranial floor refers to the internal base of the cranial cavity; the image displays facial bones and sinuses, not the endocranial base.
- "Superior view of the cranial floor": would be an internal view of the cranial base from above, which is not shown.

6) Conclusion
This image is a coronal/frontal view of the skull — confirming the provided correct answer: coronal/frontal view of the skull.
