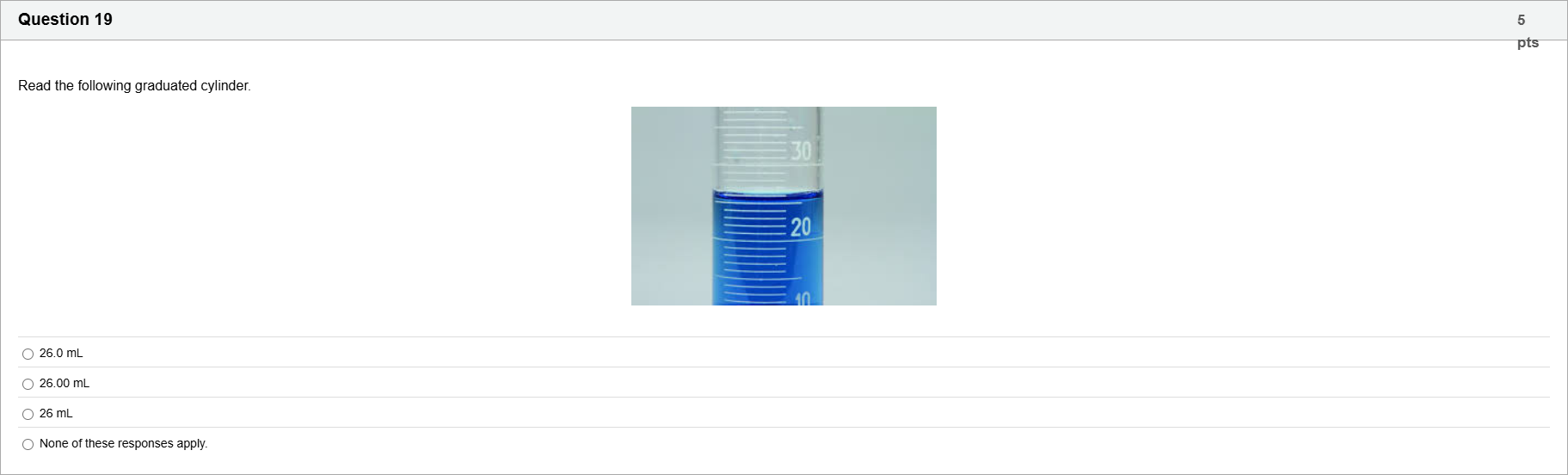

Read the following graduated cylinder.

Question

BlackTom AI · Accepted Answer

Bottom of the meniscus should be read at eye level, so use that value and include one estimated digit beyond the smallest tick: the correct report is 26.0 mL.

1) Relevant knowledge points and concepts
- Liquids in graduated cylinders form a meniscus; you read the bottom of the meniscus at eye level to avoid parallax error.
- The measurement is reported with an uncertain final digit: you read to the smallest marked division and estimate one additional digit.
- Significant-figure conventions: writing an estimated digit shows the precision (e.g., 26.0 mL indicates an estimated tenth of a milliliter).

2) Step-by-step reasoning process
- Determine the scale: the large labeled marks show 10, 20, 30 mL. Between 20 and 30 there are 10 equal minor divisions, so each minor division = (30 − 20) / 10 = 1.0 mL.
- Count from the 20 mL mark up to the meniscus: the meniscus lies six minor divisions above 20 mL. That gives a direct reading of 20 + 6 × 1.0 = 26 mL.
- Because the smallest division is 1.0 mL, estimate one digit beyond that (the tenths place) to express the uncertainty: estimate the meniscus to the nearest 0.1 mL → 26.0 mL.

3) Calculations and intermediate steps
- Minor division size = (30 mL − 20 mL) / 10 divisions = 1.0 mL per division.
- Number of divisions above 20 mL = 6.
- Raw reading = 20 mL + (6 × 1.0 mL) = 26 mL.
- Include one estimated digit: 26.0 mL (±0.1 mL).

4) Why the correct answer is correct
- The meniscus sits at the sixth 1-mL tick above 20 mL, giving 26 mL. Including one estimated decimal place (because you estimate between 1-mL ticks) yields 26.0 mL, which correctly communicates the measured value and its precision.

5) Why the other options are incorrect
- 26.00 mL implies two estimated decimal places (precision to 0.01 mL), which is not justified by 1-mL scale divisions.
- 26 mL omits the estimated digit and therefore understates the reported precision customary for such readings.
- "None of these responses apply" is wrong because a correct, justifiable reading is available.

6) Conclusion
The measured volume, read at the bottom of the meniscus with one estimated digit, is 26.0 mL, which matches the provided correct answer.
