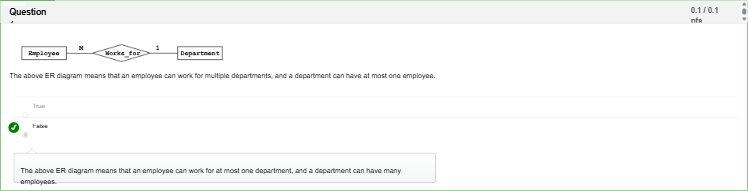

The above ER diagram means that an employee can work for multiple departments, and a department can have at most one employee.

Question

BlackTom AI · Accepted Answer

In ER diagrams the cardinality markers "1" and "M" (many) indicate how many instances of the entity next to the marker may participate in the relationship for each instance of the opposite entity. The marker is read toward the entity it is adjacent to: the symbol next to Employee tells how many Employees can be associated with one Department, and the symbol next to Department tells how many Departments can be associated with one Employee.

Step-by-step reasoning:
1. Identify the cardinalities shown: the diagram shows "M" adjacent to the Employee entity and "1" adjacent to the Department entity.
2. Interpret the marker near Employee: "M" next to Employee means that for a single Department there may be many Employees associated with it (i.e., a department can have many employees).
3. Interpret the marker near Department: "1" next to Department means that for a single Employee there can be at most one Department associated with that employee (i.e., an employee can work for at most one department).
4. Translate into plain language: each Employee -> at most one Department; each Department -> many Employees.

Why the correct answer is False:
- The statement in the question reverses these interpretations: it claims an employee can work for multiple departments and a department can have at most one employee. That is the opposite of what the diagram shows. Because the actual diagram indicates Employee has cardinality 1 (per Employee at most one Department) and Department has cardinality M (per Department many Employees), the given statement is incorrect.

Why the other option (True) is incorrect:
- Accepting "True" would require swapping the meanings of the cardinality markers; that contradicts how ER cardinalities are read and therefore is wrong.

Conclusion: The correct evaluation is False, matching the provided answer.
