Using the alpha-beta algorithm, which is the correct pruning?

Question

BlackTom AI · Accepted Answer

Alpha-beta pruning tracks two bounds: alpha (best value found so far for MAX) and beta (best value found so far for MIN). We traverse left-to-right, updating alpha/beta and pruning when alpha >= beta.

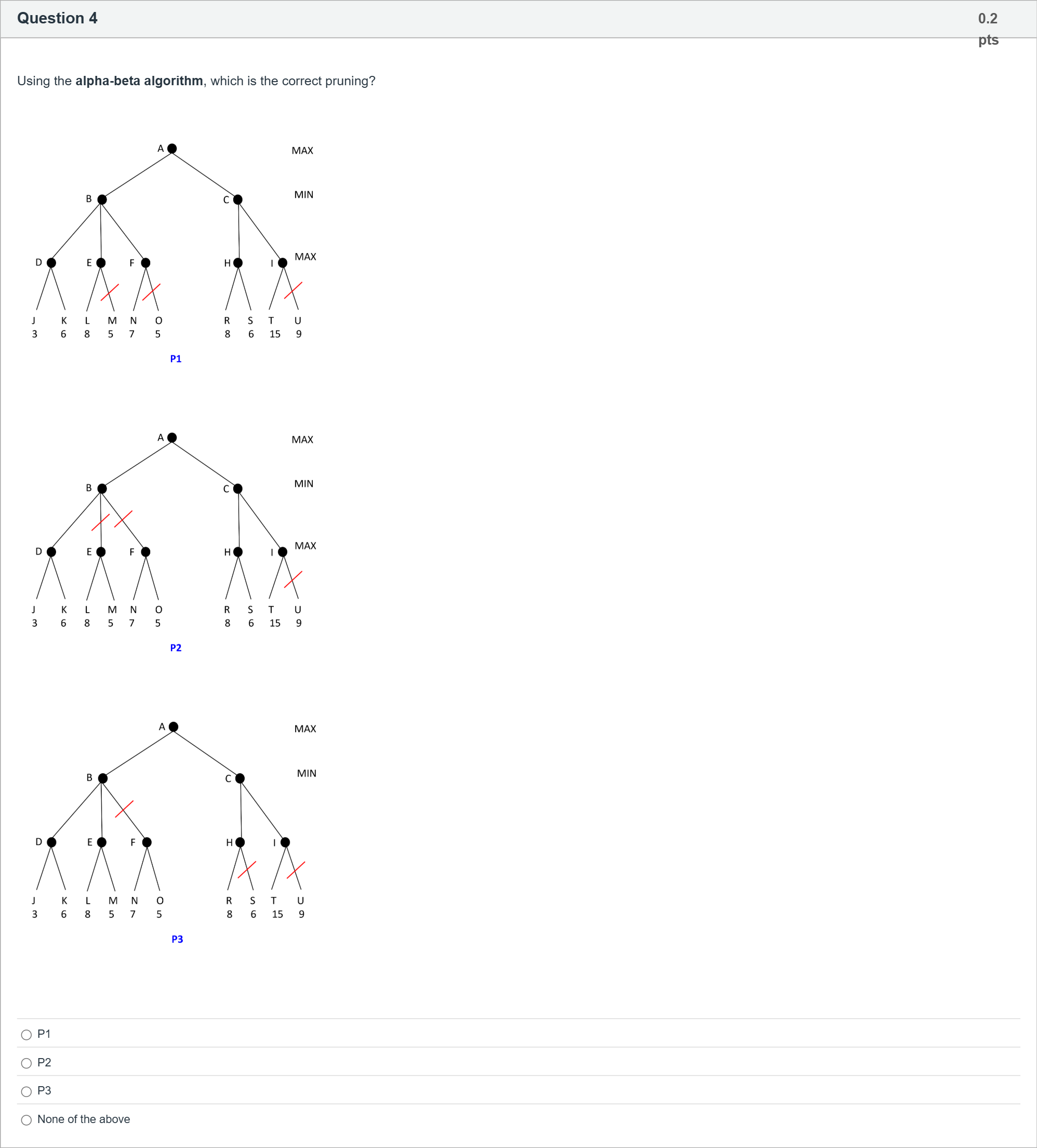

Step-by-step (left subtree B is MIN; its children D,E,F are MAX nodes; leaves: J=3, K=6, L=8, M=5, N=7, O=5; right subtree C is MIN with MAX children H(R=8,S=6) and I(T=15,U=9)):

1) Root A (MAX): alpha = -∞, beta = +∞. Explore left child B (MIN).
2) At B: alpha inherited = -∞, beta = +∞. Explore D (MAX):
   - D sees J = 3 → D.alpha = 3
   - D sees K = 6 → D.alpha = max(3,6) = 6
   - D returns value 6 to B. B.beta = min(+∞,6) = 6.
   So after D, B has current best = 6 and A.alpha updates to max(-∞,6) = 6.
3) Explore E (MAX) under B:
   - E sees L = 8 → E.alpha = 8.
   - Compare E.alpha (8) with B.beta (6): since E.alpha ≥ B.beta (8 ≥ 6), E cannot produce a value < 6 (MIN at B already has 6), so E’s remaining child M is pruned. (Pruned node: M)
   - E would yield ≥8, so B remains 6.
4) Explore F (MAX) under B:
   - F sees N = 7 → F.alpha = 7.
   - Compare F.alpha (7) with B.beta (6): 7 ≥ 6 so F’s remaining child O is pruned. (Pruned node: O)
   - F would yield ≥7, so B remains 6. B returns 6 to A; A.alpha remains 6.
5) Now explore right child C (MIN) of A with alpha = 6:
   - Explore H (MAX): R = 8 → H.alpha = 8; S = 6 → H.alpha = max(8,6)=8. H returns 8 to C. C.beta = min(+∞,8)=8.
   - Since C.beta (8) > A.alpha (6) no pruning yet.
6) Explore I (MAX) under C with C.beta = 8:
   - I sees T = 15 → I.alpha = 15.
   - Now I.alpha (15) ≥ C.beta (8), so remaining child U is pruned. (Pruned node: U)
   - I would return ≥15; C remains min(8,≥15)=8; A will choose max(6,8)=8.

Pruned leaves: M, O, and U — exactly the pruning pattern labeled P3. Other patterns (P1, P2) prune different nodes incorrectly (they either prune children before the alpha/beta condition holds or fail to prune the two left-subtree children while pruning others incorrectly). Therefore the correct pruning diagram is P3, matching the provided answer.

Using the alpha-beta algorithm, which is the correct pruning? 单项选择题
