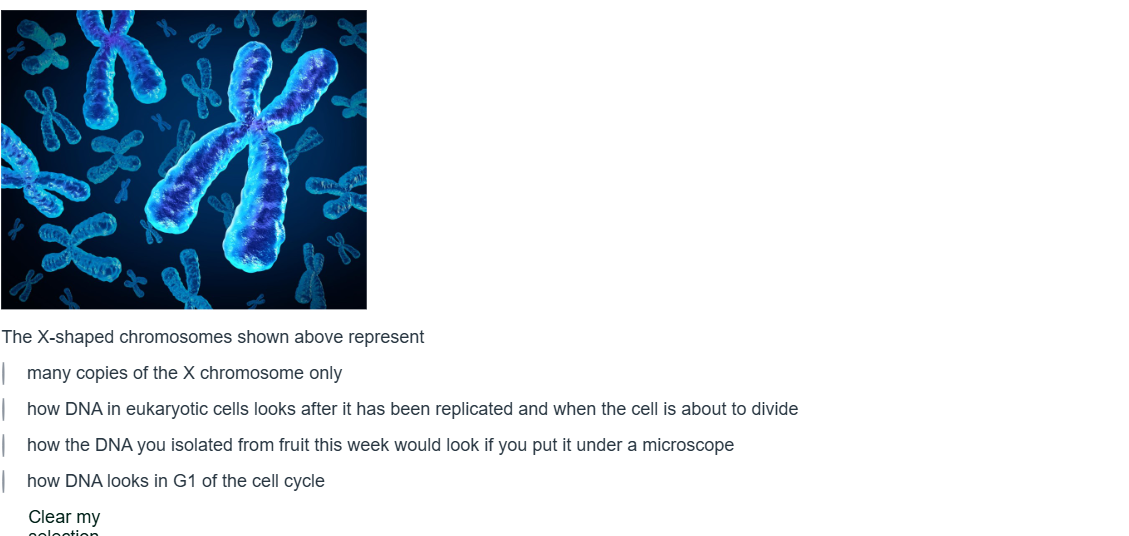

Question at position 8 The X-shaped chromosomes shown above representmany copies of the X chromosome onlyhow DNA in eukaryotic cells looks after it has been replicated and when the cell is about to dividehow the DNA you isolated from fruit this week would look if you put it under a microscopehow DNA looks in G1 of the cell cycleClear my selection

Question

Question at position 8  The X-shaped chromosomes shown above representmany copies of the X chromosome onlyhow DNA in eukaryotic cells looks after it has been replicated and when the cell is about to dividehow the DNA you isolated from fruit this week would look if you put it under a microscopehow DNA looks in G1 of the cell cycleClear my selection

BlackTom AI · Accepted Answer

After DNA replication, each eukaryotic chromosome consists of two sister chromatids joined at the centromere, giving the X-shaped appearance shown.

1. Relevant knowledge and concepts
- Cell cycle phases: G1 (gap 1, unreplicated DNA), S (DNA synthesis/replication), G2 (gap 2), M (mitosis).
- Chromosome structure: one replicated chromosome = two identical sister chromatids connected at a centromere; chromatin condenses into visible chromosomes during prophase/metaphase.
- Microscopy: condensed, replicated chromosomes are visible as X-shaped structures during mitosis; unreplicated DNA or extracted DNA appears as long, uncondensed fibers.

2. Step-by-step reasoning
- In G1 each chromosome is a single DNA molecule (one chromatid) — not X-shaped.
- During S phase the DNA is replicated, producing two identical sister chromatids per chromosome.
- During G2 and especially prophase/metaphase of mitosis, chromatin condenses and the two sister chromatids remain joined at the centromere, forming the classic X-shape seen in diagrams and microscopy.
- Therefore the X-shaped depiction corresponds to chromosomes after replication and when the cell is preparing to divide.

3. Intermediate steps (conceptual)
- Start: single chromatid (G1)
- DNA replication in S → two sister chromatids per chromosome
- Condensation in M phase → chromatids compact into visible X-shaped chromosomes joined at centromere

4. Why the correct answer is correct
- The X-shape directly represents one replicated chromosome composed of two sister chromatids joined at the centromere; this morphology appears after replication and during the cell’s preparation for division (G2/M). Thus “how DNA in eukaryotic cells looks after it has been replicated and when the cell is about to divide” accurately describes the image.

5. Why the other options are incorrect
- “Many copies of the X chromosome only”: misleading — the image shows morphology (X-shape), not multiple sex chromosomes. It does not imply multiple copies of a specific chromosome type.
- “How the DNA you isolated from fruit this week would look under a microscope”: extracted DNA is decondensed, long strands; it would not appear as compact X-shaped chromosomes.
- “How DNA looks in G1 of the cell cycle”: in G1 chromosomes are unreplicated single chromatids and do not form X-shaped structures.

6. Conclusion
The X-shaped chromosomes represent replicated, condensed chromosomes seen when a eukaryotic cell is about to divide, confirming the provided answer: “how DNA in eukaryotic cells looks after it has been replicated and when the cell is about to divide.”
